The NHS-30 Series feature the ultra-compact , light |
 |
|
|
weight ,high efficiency lower price inverter by adopting |
| |
the high frequency switching technologies. |
|
The NHS-30
Series provide the switchable output |
|
frequency to 50Hｚ・60Hｚ・400Hz. |
|
And
the NHS-30 Series offer optimal features for the |
|
battery operation local backup as the data logger, measuring |
| |
instruments,modem
and EL by taking in the features of the |
|
|
| |
input/output insulation,wide range of the input voltage |
|
|
| |
range,high accuracy and high efficiency. |
|
|
| |
|
|
|
 |
ＮＨＳ－3０ Series Specifications （＊）Between
the Primary –Secondary-Case |
| Input
Voltage |
DC12Ｖ,24Ｖ,48Ｖ,100Ｖ |
Conversione
Efficiency |
70%
and over(rated) |
| Input Voltage Range |
80～150％ |
Output
Wavefoem |
Rectangular
Waveform |
| Output
Voltage,Current |
ＡＣ100Ｖ，0.3A |
Storage
Temparature |
-10から+90℃ |
| Output
Voltage Accuracy |
±2％ |
StorageHumidity |
30～85％RH |
| Output
Electric Power |
30VA |
Operating
Temperature |
-10℃～+40℃ |
| Over
Current Protection |
Output
Voltage Droop/Automatic Recovery |
Operating
Humidity |
30～85％RH(nodew) |
| Over
Discharge Protection |
Output
Switch Off |
Insulation Registance(＊） |
20ＭΩand over atDC500VMG
|
|
Output Frequenｙ
|
50Hz/60Hz/400Hz(Switch) |
Insulattion
Withstand Voltage(＊） |
ＡＣ1500Ｖ 1
minute |
| Frequency
Accuracy |
±0.1％ |
Weight |
About
400g |
|
| |
ＮＨＳ－3０ Series Products List |
| Types |
Input
Voltage |
Input
Current |
Output
Voltage |
Output
Current |
| Rated Voltage |
Rated Voltage |
Rated
Current |
Maximum
Current |
| ＮＨＳ-30-1Ｚ１ |
12V |
9.6～ 18V |
3.5A |
4.5A |
100V |
0.3A |
| ＮＨＳ-30-2Ｚ１ |
24V |
19.2～ 36V |
1.7A |
2.2A |
100V |
0.3A |
| ＮＨＳ-30-4Ｚ１ |
48V |
38.4～ 72V |
0.89A |
1.1A |
100V |
0.3A |
| ＮＨＳ-30-8Ｚ１ |
100V |
80～150V |
0.42A |
0.5A |
100V |
0.3A |
|
| |

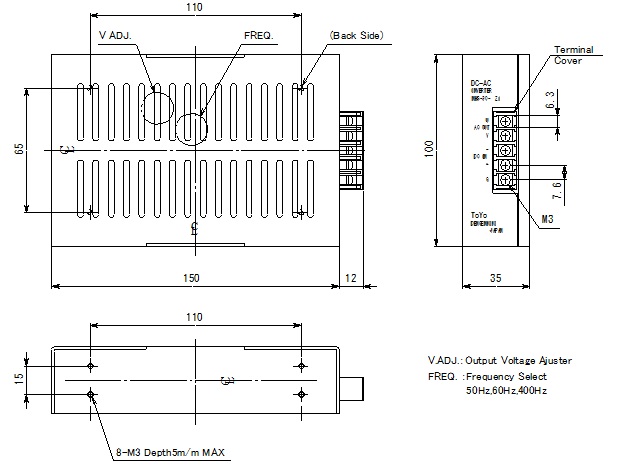

ＮＨＳ－3０ Series Dimensional Outline Drawing |
|
 |
|
